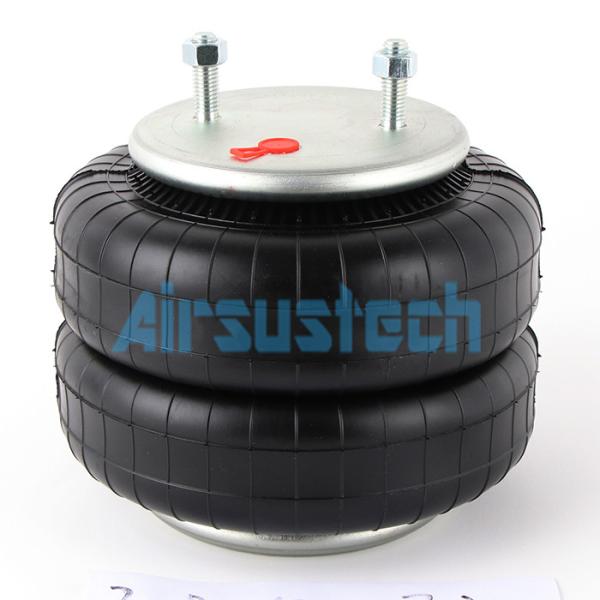

Easy Installation Suspension Air Spring White Zinc Iron Cover Plate W01-358-6943 Firestone Rubber Air Balloon
Product Description:
Suspension Air Springs are air suspension components designed to provide an adjustable air lift for a variety of vehicles. The air springs are made of black rubber and white zinc iron cover plate, making them incredibly durable and universal for all types of vehicles. Air Lift Air Springs are an affordable and convenient way to enhance the performance of your vehicle, allowing you to adjust the ride height and improve stability. The air suspension components are packaged in a strong carton for secure transport and long-term storage.
With Air Ride Suspension, your vehicle can easily be adjusted to the ideal ride height, allowing for better handling and overall performance. The air springs are designed to be highly durable and long-lasting, so they are a great investment for those who want to optimize their vehicle's performance. The air springs are also universal, meaning they can be used on any type of vehicle, making them a great choice for anyone looking for a cost-effective way to improve their vehicle's suspension.
Suspension Air Springs are the perfect solution for anyone looking to improve the performance of their vehicle. With their strong carton packaging, black rubber and white zinc iron cover plate, and high durability, these air springs are a great choice for anyone looking for a reliable and cost-effective way to upgrade their vehicle's suspension.
Features:
- Product Name: Suspension Air Springs
- Load Capacity: According To The Sizes
- Size: Standard Specifications And Customization
- Packaging: Strong Carton Packaging
- Warranty: One Year
- Air Shocks: High Quality Air Shocks
- Suspension Air Bags: Provide Comfortable Ride Quality
- Load Capacity: Load Capacity Up To 2000kg
Technical Parameters:
| Parameter | Description |
| Pressure Range | 0.2-0.8 MPA |
| Top Cover Diameter | 160mm |
| Bottom Cover Diameter | 160mm |
| Air Hole | 1/4NPTF |
| Top Plate Screw (Nut) Teeth | 2X1/2-13UNC |
| Screw Center Distance | 89mm |
| The Air Hole Distance Between the Nuts | 44.5mm |
| Maximum Diameter of the Rubber Bellows | 262mm |
| Working Stroke | Maximum 325 mm to Minimum 79 mm |
| Compressed Height | 246mm |
OEM Number:
Firestone Number: W01-358-6943 / W013586943 / W01 358 6943
Firestone Number: WO1-358-6943 / WO13586943 / WO1 358 6943
Contitech Number: FD200-25 426 / FD 200-25 426 / FD200-25426
Contitech Number: 161332
Goodyear Number: 2B9-250 / 2B 9-250 / 2B9 250
Goodyear Number: 578923206 / 578 92 3 206 / 578-92-3-206
Triangle Number: 6332 / 4426
Watson&Chalin Number: AS-0041 / AS 0041
Neway/SAF Number: 90557237
Ridewell Number: 1003586943C
Tuthill Number: 6352
