Product Overview

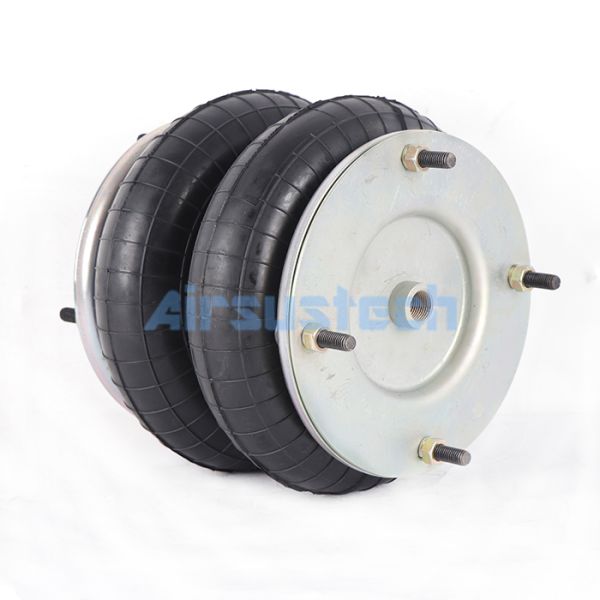

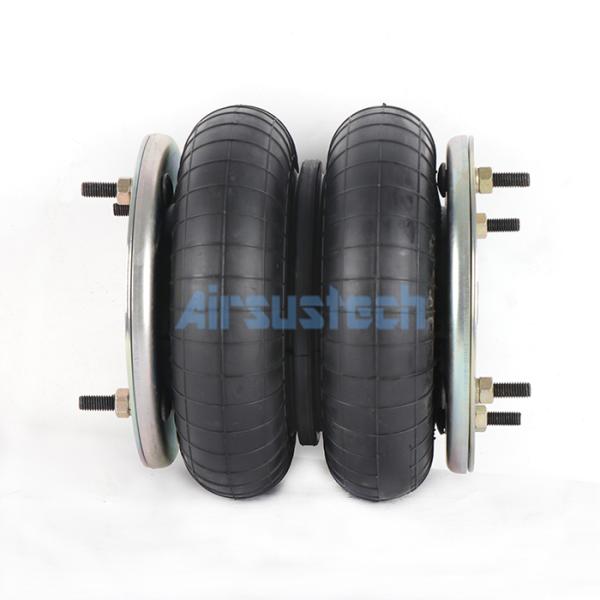

High-performance double convoluted air spring assembly designed for industrial applications requiring reliable pneumatic actuation.
Product Specifications
Model Number: 12×2
Standard: OEM Standard
Replaces For: Firestone, Dunlop, Contitech, Parker
Material: Natural Rubber
Bellows Type: Double Convolutions
Brand: AIRSUSTECH
12×2 Air Bags Technical Specifications
Top Cover Plate Diameter: 210 mm
Top Cover Plate Screw Centers: 181 mm
Bottom Cover Plate Diameter: 210 mm
Bottom Cover Plate Screw Centers: 181 mm
Top Plate Screw Threads: 4×M10
Bottom Plate Screw Threads: 4×M10
Air Connection: G1/2
Natural Rubber Bellow Diameter: 250 mm
Design Height: 190 mm
What Are Pneumatic Air Rubber Bellows?
Air bellows are ideal for single-acting, short-stroke, high-thrust actuators. They are made of fabric-reinforced synthetic rubber and are available in single, double, or triple configurations, depending on the stroke and model. They contain no reciprocating metal parts, allowing for virtually frictionless thrust compared to conventional cylinders.
- 10 sizes, diameter 70-660 mm
- Stroke 45 to 375 mm
- Single, double or triple turn
- High thrust, frictionless motion
- Maintenance-free
Other Rubber Air Spring Models
| Nominal Diameter (Inches) |
Air Connection |
Max. Force (N) at 1 Bar (0 Stroke) |
Max. Stroke (MM) |
Part Number |
| 70 (2 3/4×2) |
G1/4 |
400 |
50 |
9109009 |
| 110 (4 1/2×2) |
G3/8 |
900 |
80 |
9109401 |
| 150 (6×2) |
G1/2 |
1800 |
112 |
9109001A |
| 200 (8×2) |
G1/2 |
3000 |
180 |
9109011 |
| 250 (10×2) |
G1/2 |
4800 |
200 |
9109021 |
| 300 (12×2) |
G1/2 |
6800 |
195 |
9109041 |
| 370 (14 1/2×2) |
G1/2 |
10000 |
225 |
9109061 |
| 410 (16×2) |
G1/2 |
11400 |
250 |
9109171 |
| 550 (21 1/2×2) |
G3/4 |
24000 |
300 |
9109150 |
| 660 (26×2) |
G3/4 |
30800 |
310 |
9109156 |
